BND 15
Narrow gauge mining locomotive
Scale 1:14
Difficulty : Easy
Price: 10€
Model description

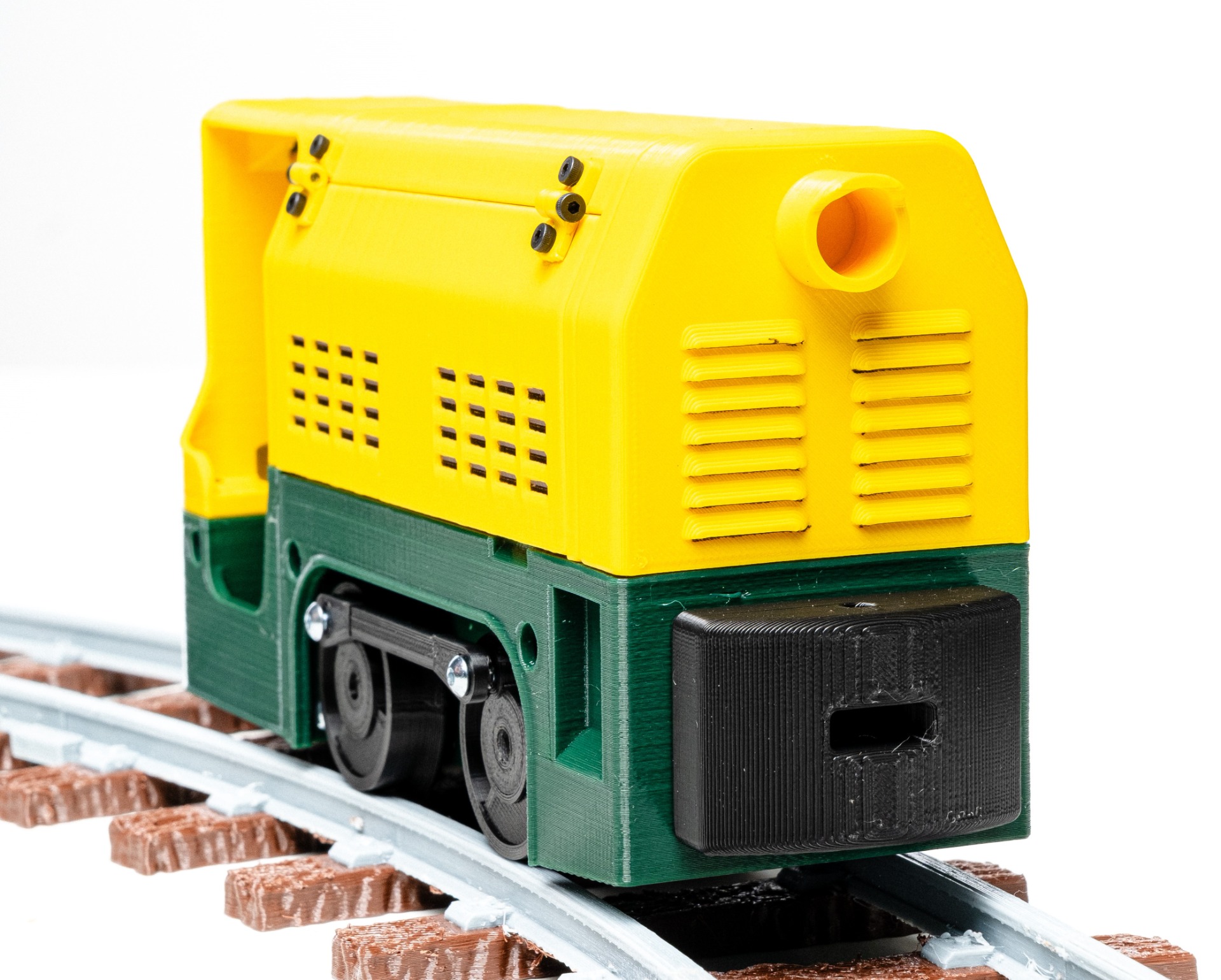

Fully 3D printable model od Czechoslovakia minning narrow gauge locomotive for 45mm gauge garden railways. 1:14 scale (7/8 scale). This large scale locomotive provide you a to build your own model, enjoy a assembly time of this unique mining locomotive. Original locomotive operates on 600mm gauge at many mines across the czechoslovakiafor many decades. This older design locomotives uses linkage between both axles for transfer torq from powered axle to other. This similar design was been used similary on this model. The whole model in only abyout few milimeters wider that track gauge, so thanksfully to this model you can construct and operate your own mine at your garden railroad. Sets contains a mining cart typicaly used in eastern Europe.
Model was designed for FDM printing, with funcional valvegear and many details, clever construction, one elecric motors powering both axles by external linkage provides you a good alternative about common models on market, especially if you are narrow gauge enthusiasts, you looking for something new engines for your garden railroad or you are enthuisast to 3D printing and looking for new interesting project.
So, let´s go print it :)
Technical specification
- Please note: This is a digital product only. You are purchasing 3D printing files, not a physical item.
- Dimensions
- Minimal track radius: 450mm
- Gauge 45mm, scale 1:14
Required electronics compoments: Radiocontrol set (transmitter / receiver), DC Electronic speed regulator, Battery and 1x TT motor
- Minimal required print bed size 180x180mm
- Every necessary information can be found here in detailded build guide
